Valentine one wiring diagram. Our book servers spans in multiple locations allowing you to get the most less latency time to download any of our books like this one. Heres a look at all the different options with the V1 Ge. Isuzu Npr Radio Wiring Diagram.

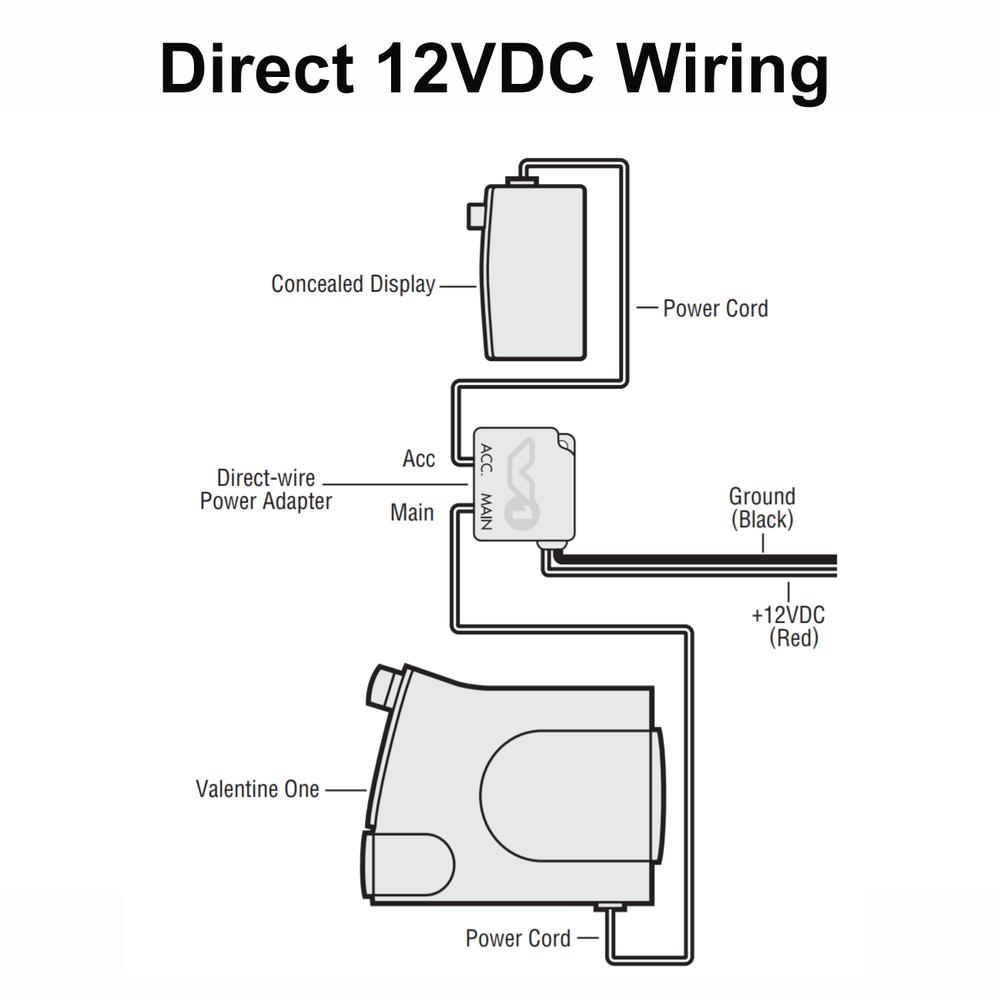

Valentine 1 Direct Wire Adapter 19. Plug the other end into the Lighter Adapter jack marked MAIN and insert the adapter into the cars 12V socket. During this 4-minute video youll discover how easy it is to direct wire your Escort Beltronics Valentine One or any other radar detector to your car truc.
I tapped into my radio wire. Inside the all-new magnesium case is an all-new and patented radar-seeking engine adapted from a concept used by military CHIRP radars to find fainter targets farther away with higher precision. Complete cables are available in many lengths at electrical or building-supply stores.
Having the bulky V1 unit and cords hanging from your windshield invites theft and increases the likelihood of a ticket in the event you are stopped by law enforcement. Above is a picture of the Valentine one package I purchased. The main unit comes with enough RJ11 wires to hardware the main unit in a 993 without needing any additional RJ11 wires.
Draw Tite Activator 2 Wiring Diagram. If your vehicle has only a USB socket youll need to purchase a USB-to-12V Convertor. Valentine one manual is available in our digital library an online access to it is set as public so you can get it instantly.
Valentine One uses standard RJ-11 modular telephone connectors. This DIY will explain the method I used to hardwire the Valentine one radar detector to my 993 and the location where I mounted the remote display. Kindly say the valentine one manual is universally compatible with any devices to read.
You can use any telephone cable the one that runs from the wall jack to the phone for a power cord. 2003 Saturn Vue Stereo Wiring Diagram. If you use a Valentine 1 it actually comes with a directwire adapter as part of the package.
2 Sep 6 2003. It consists of the main unit and the remote display. Your power wire is the only red one and the black is your ground.
The middle wire in the 3-wire harness is switched-hot Green w Black stripe. V1 Gen2 is an entirely new security instrument that outperforms by a clear margin even the most highly-evolved version of V1. Ultra Linear Amp Wiring Diagram Motorcycle Game Pc Land Rover Discovery Radio Wiring Diagram Piaa Off Road Light Wiring Diagram Craftsman Lawn Tractor Ignition Wiring Diagram Wiring Diagram For 2 Dvc 4 Ohm Subs 2005 Jeep Grand Cherokee Starter Wiring Diagram Chevrolet Aveo 2007 Radio Wiring Diagram Wiring Diagram 1999 Gmc Safari 1993 Geo Tracker Stereo Wiring Diagram Z32 Ecu Wiring Diagram.
3arr3 Relay Wiring Diagram. The top one in line with the red wire is. How to connect to 12V Plug one end of the supplied power cords into the detectors RJ11 jack.
To convert the Valentine One to the Gen 2 mirror mount only required that the suction cups be removed and the bracket mounted to the Gen 2 detectors mount. This adapter has two ports one for the V1 and another for an accessory like a bluetooth module or concealed display. The MirrorTap Power Cord simply plugs into the exposed wire harness on the rear face of your auto-dimming mirror.

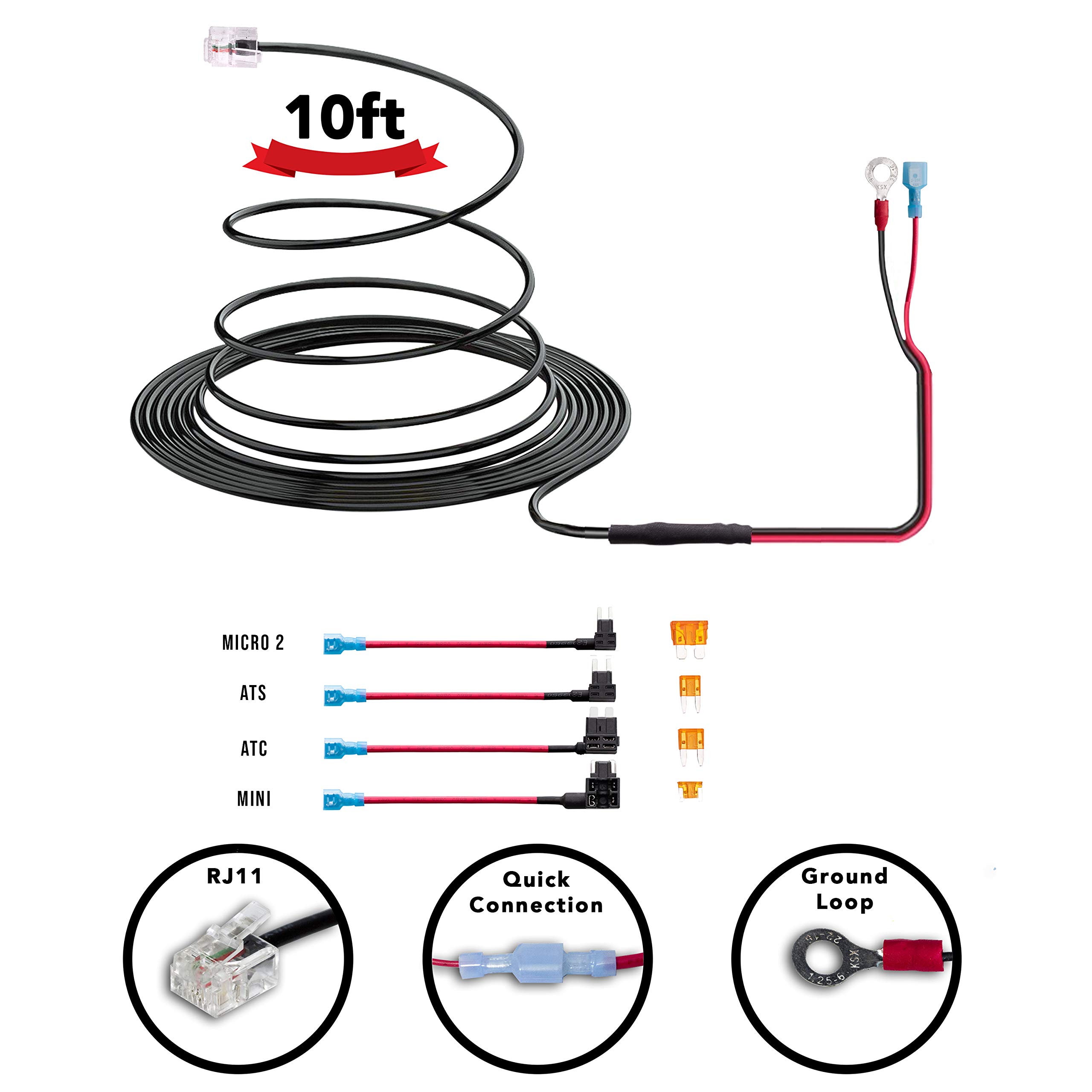

Valentine One Wiring Diagram. Direct-wire power adapter Straight Power Cord Fuse Wiring Harness Connector and Self-Stick Interlocking Fasteners package. Just cut off your cigarette lighter plug and splice it into the radio wires.
Escort Beltronics Valentine One Uniden Radenso Cobra K40. Theyll eventually snap free. Joined Dec 2 2001.
2004 Hyundai Santa Fe Monsoon Radio Wiring Diagram. When reverse has been engaged the system will warn of a vehicle or object approaching from behind on either side of the vehicle or directly from behind yet out of rear camera range. Some systems will even apply the brakes to avoid impact.
The two panels one vinylleather one carpeted are removed by grasping the rear edge farthest to the front of the car and pulling out toward the fuse panel. See mock up photograph below The red arrows indicate the two nuts and bolts that secure the detector bracket blue arrow to the mount. No cutting or splicing wires.
Im pretty sure the wire from your radar detector that is striped is positive red wire and all black is negitive. Valentine One Radar Remote Display Install F30driver Oem Bmw 3 Series F30 Fuse Box 9261111 B111 Railway Auto Spares Bmw Fuse Box 3 Series Universal Wiring Diagram Designs Fuse Box Location F30 335i Jan 2013 Build Bmw 3 Series And 4 Bmw 3 F30 F80 Fuse Box 9337880 2534776 X1 Fuse Box Bmw F30 Fuse Box Diagram Bmw Fuse Symbols Explained. Valentine One Radar Wiring Diagram Related Gallery.

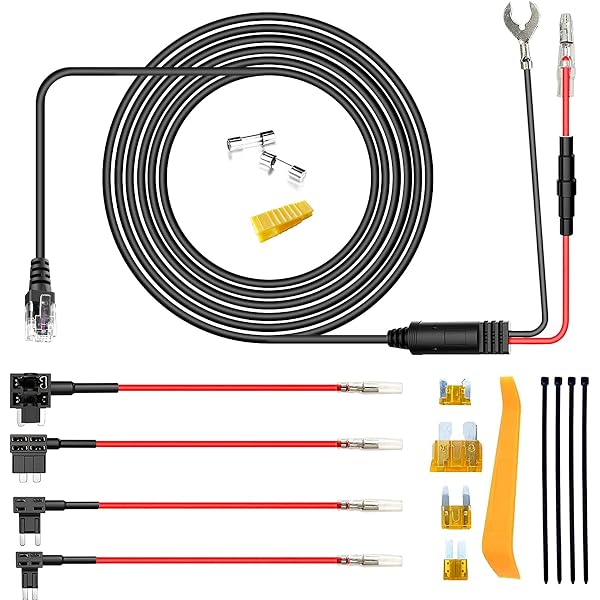

Direct-Wire Adapter Kit Valentine Radar Detector Products. The MirrorTap is constructed of 26 gauge wire with a 2 amp inline fuse and a black braided flexible sleeve. Use a nearby metal-in-metal screw for the ground wire.
The V1 Gen2 doesnt have GPS built in but you can add GPS features and more with third party apps. Grand Prix Monsoon Amp Wiring Diagram. Once you get the fuse pulled youre going to want to put that fuse in your add-a-circuit which has slots for two fuses.
The information you posted on 1 removing the cover abovebehind the mirror and 2 the wire colors was spot-on and your post and info made installing my. Totaling 443 with freight charge directly from the Valentines web site. 2006 Honda Rancher Wiring Diagram.
2 Gang 1 Way Switch Wiring Diagram. V1 Gen2 resists interference from RCTW radar. Use with V1 or V1 Gen2.
You can also make your own power cord using bulk phone cable cut to whatever length you choose.
